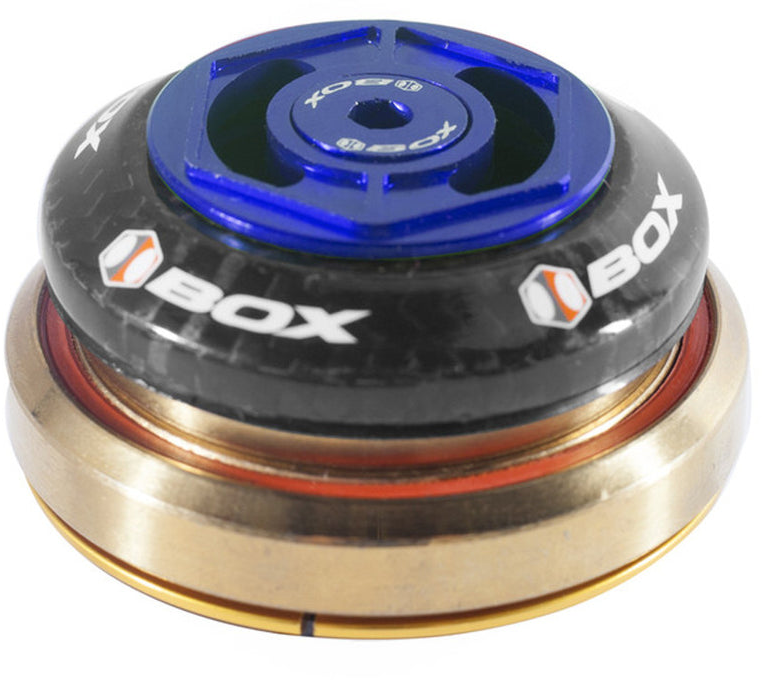

BOX One Carbon Sealed Integrated 45 x 45 1.5" Tapered Headset

BOX One Carbon Sealed Integrated 45 x 45 1.5" Tapered Headset
  • Color: Black
  • Color: Blue
  • Color: Red
$119.99
Color: Black
S.H.I.S.: IS42/28.6|IS52/40
Please select options Unavailable

Details

There is more to Box carbon headsets than their striking good looks. From top to bottom, the Box One™ Carbon Tapered Headset was designed to perform.

Each unit features a custom CNC-machined aluminum compression cap in the shape of the Box logo with cut-outs to reduce weight.

At the center of the top cap is an anodized aluminum bolt that threads into a gold anodized aluminum expander plug. This expander eliminates the need for a star nut and works with all 1-1/8-inch steerer tubes—even carbon fiber steerer tubes.

The top bearing cover is crafted from carbon fiber, which adds style and shave weight.

At the heart of the headset are two super-smooth, titanium-nitride coated, sealed, 45×45 bearings. The titanium coating results in a low friction coefficient, increased corrosion resistance, and smoother rolling bearings.

A split crown race makes installation and removal from forks super easy. Box 1.5-inch headsets are intended for tapered frames and forks and include an adapter crown race that allows you to run a fork with a straight 1-1/8-inch steerer tube.

FEATURES

- Oversized Technology
- Durable Titanium-Nitride Coated Sealed Bearings
- Lightweight Non-Structural Carbon Components
- Reusable Expander Wedge
- Includes an adapter crown race that allows you to run a fork with a straight 1-1/8” steerer tube.

COMPATIBILITY

- Box One X5 Fork
- Box One X2 Fork
- Box One XL Fork
- Frames with an Integrated and Tapered Head-Tube

Part Numbers

Option UPC MPN Store SKU
Black / IS42/28.6|IS52/40 616043825823 BX-HS16CIT15-BK
Blue / IS42/28.6|IS52/40 616043825830 BX-HS16CIT15-BL HEA29980958U
Red / IS42/28.6|IS52/40 616043825847 BX-HS16CIT15-RD
